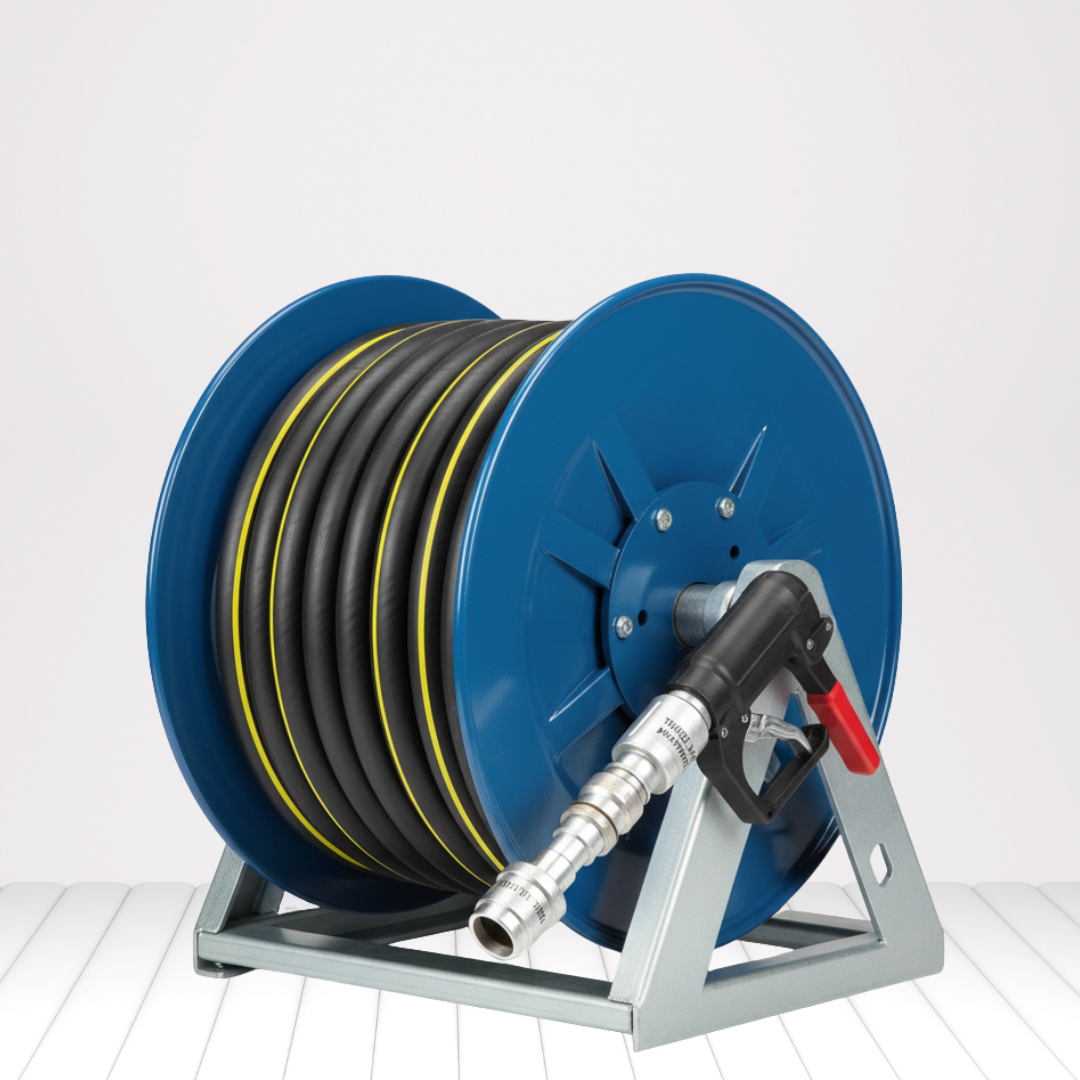

Hose Reel Assembly

Description: The Hose Reel Assembly is a robust and compact system designed for safe, efficient handling and storage of hoses used in fuel dispensing, refueling, lubrication, water, and chemical applications. It enables controlled unwinding and automatic retraction of hoses, reducing operator fatigue, hose wear, and tripping hazards while ensuring a neat, organized workspace. Available in manual, spring rewind, or motorized drive configurations, the hose reel is built with industrial-grade materials and can be customized to handle a wide range of pressures, flow rates, and media.

Mobirise Website Builder

Specification:

Reel Type  -   Manual / Spring Rewind / Hydraulic / Electric Motor Rewind
Hose Size  -     ¾” to 2½” (custom sizes available)
Hose Length Capacity  -   10 m – 50 m (standard) / custom up to 80 m
Material of Construction  -  Carbon steel / Stainless steel / Aluminium alloy
Finish / Coating  -  Powder coated / Hot-dip galvanized / Epoxy painted
Working Pressure -   Up to 25 bar (standard) / 40 bar (high-pressure)
Operating Temperature -  –20 °C to +80 °C
Rotation Type -  Single or dual swivel joint (360° rotation)
Swivel Material -  SS316 / Brass / Aluminium
Drive Motor (for motorized type)  - 12 / 24 V DC or 230 V AC
Mounting  -  Fixed base / Wall-mounted / Vehicle chassis / Skid
Rewind Control -  Local switch / Remote pendant / Air control
Compliance  -  ISO 9001 / CE / EI standards (fuel system models)


Product Features :

 Heavy-duty construction for long-lasting performance in demanding environments.
 Smooth and controlled hose retraction reduces wear and enhances operator safety.
 Full 360° swivel joint prevents hose twisting and ensures leak-free operation.
 Customizable design — available in manual, spring, or motorized rewind versions.
 Corrosion-resistant finish suitable for outdoor, marine, and fuel applications.
 Compact, space-saving structure ideal for mobile units or fixed installations.
 Designed for safety and reliability, meeting international fuel and industrial standards.

Hose Reel – FAQs

It safely stores and manages hoses for smooth and controlled fuel dispensing.

Manual, spring-rewind, and motorized rewind options are available.

They are constructed from carbon steel, stainless steel, or aluminium.

It accommodates hose diameters from ¾″ to 2½″.

Yes, it uses fuel-compatible seals and aviation-grade swivel joints.

Yes, customization is available for size, rewind type, material, and mounting.
