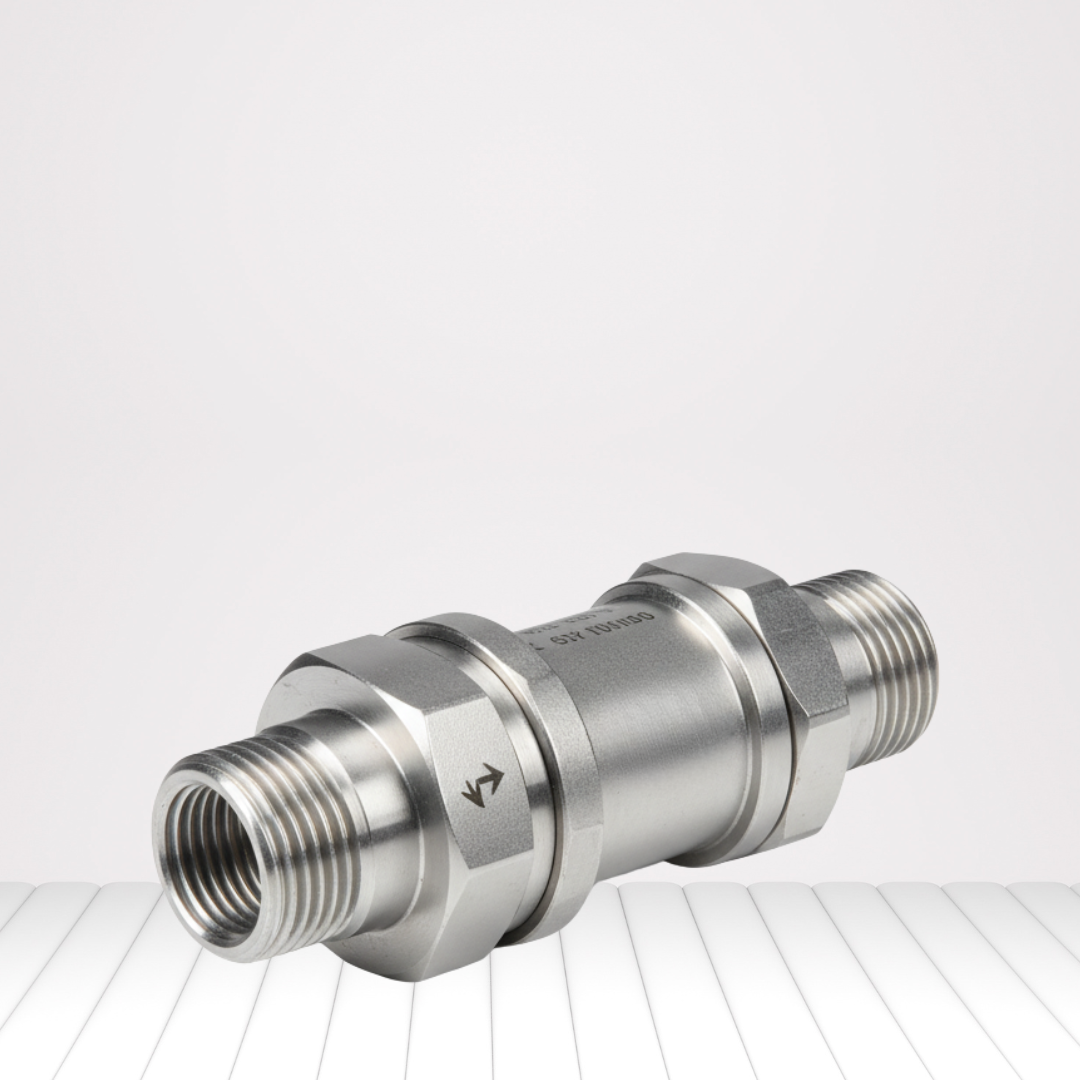

Swivel Joints

Description: Swivel Joints are precision-engineered fittings designed to allow free rotation between two connected pipelines, hoses, or arms without leakage. They are ideal for transferring liquids or gases under pressure where movement, rotation, or vibration occurs — ensuring smooth operation, safety, and long service life.

Mobirise Website Builder

Specification:

Size Range: ½″ to 12″ (custom on request)
Type: Single Plane / Dual Plane / Multi-Plane
Pressure Rating: Up to 250 bar (standard) / 6000 PSI (high-pressure models)
Temperature Range: –50 °C to +200 °C (depending on seal material)
Material of Construction: Carbon Steel / Stainless Steel (SS304, SS316) / Brass / Aluminium
Sealing Type: O-Ring / Lip Seal / PTFE / Viton
Bearing System: Dual Row Deep-Groove Ball Bearing / Roller Bearing
End Connections: Threaded (BSP / NPT) / Flanged (ANSI / DIN / JIS) / Weld Ends
Rotation: 360° Continuous Rotation
Flow Path: Full Bore / Smooth Internal Surface
Lubrication: Grease-filled chamber with nipple port (EP2 Lithium Grease)
Finish / Coating: Natural / Zinc-plated / Epoxy Painted
Leak Test: 1.5× Working Pressure (Hydrostatic)
Optional Accessories: Dust Cover, Grease Nipple, Drain Port, Anti-Rotation Bracket
Mounting Orientation: Horizontal / Vertical / Multi-axis
Certifications: MTC (EN 10204 3.1), Hydro Test Report, Pressure Certificate

Features :

 360° free rotation without leakage or twisting of hose/pipeline.
 Heavy-duty bearing assembly for long service life under high loads.
 Compact design with full-bore flow path for minimal pressure drop.
 Leak-proof seal system ensures zero leakage during operation.
 Customizable materials and sizes available as per client’s system requirements.
 Low torque even under high pressure — easy to rotate manually or hydraulically.
 Maintenance-friendly — re-greasable bearings and replaceable seals.
 Designed as per ASME / ISO / ANSI standards.

Swivel Joint – FAQs

It allows 360° rotation without twisting or stressing hoses.

From ½″ to 12″, with custom options.

Up to 250 bar standard; 6000 PSI high-pressure models.

Carbon steel, SS304, SS316, aluminium, or brass.

O-ring, PTFE, Viton, or lip seals.

Hose reels, loading arms, refuelling lines, and fluid systems.
