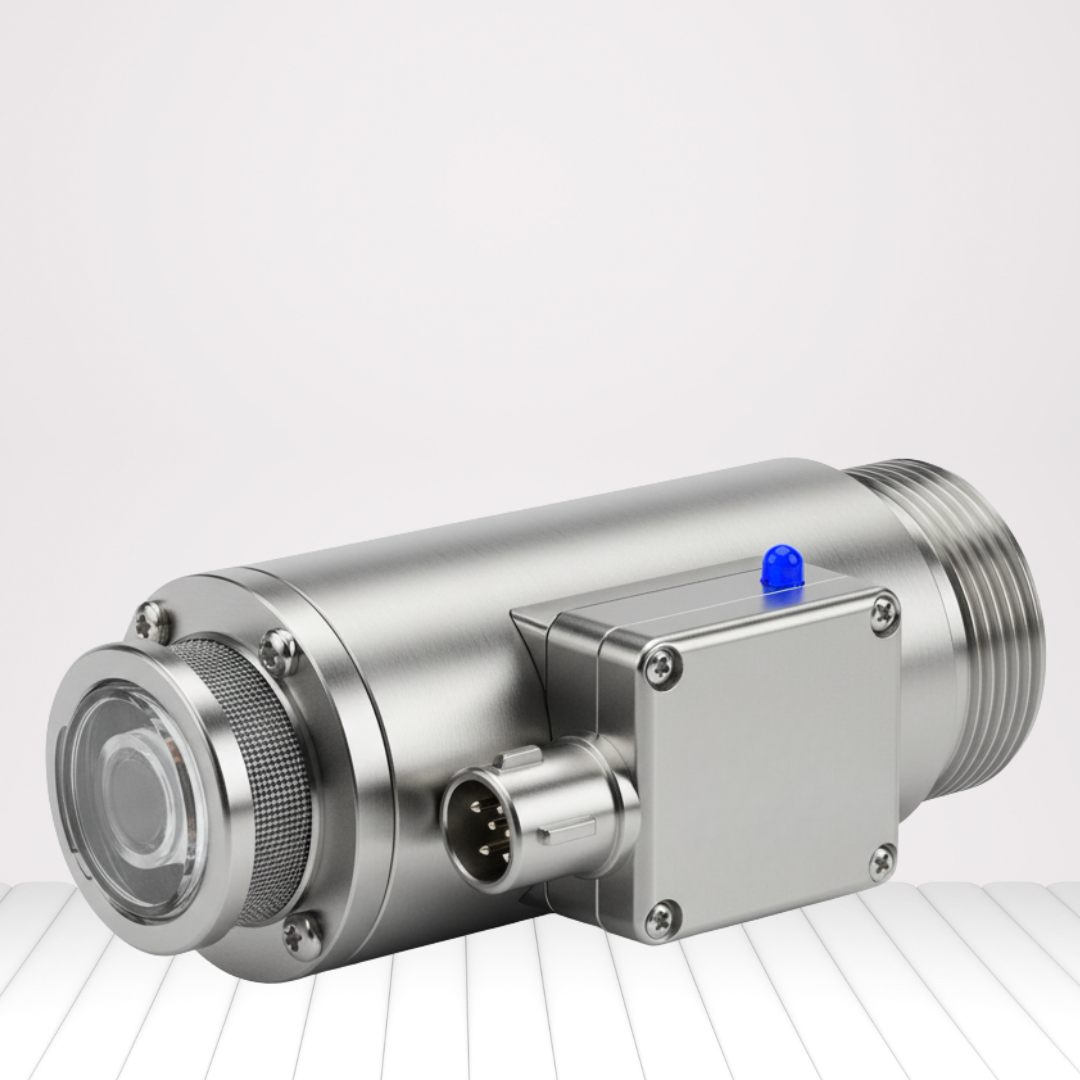

Water Detection Sensor

Description: The Water Detection Sensor is a high-precision electronic sensing device specially designed for aircraft refueling systems.
It continuously monitors the presence of free water or moisture contamination in aviation turbine fuel (ATF / Jet A-1)during storage, filtration, or refueling operations.
This sensor provides instant detection and warning to ensure that only clean, water-free fuel is delivered to aircraft— maintaining flight safety, fuel integrity, and compliance with aviation fueling standards (EI 1598 / JIG Guidelines)

Mobirise Website Builder

Specification:

Detection Type: Capacitive / Conductive (customizable)
Application Area: Aircraft refuelling trucks, fuel hydrant dispensers, filter vessels, fuel storage tanks
Power Supply: 12 V DC / 24 V DC (optional 230 V AC with converter)
Output Type: Relay (NO/NC) / 4–20 mA Analog / RS485 Digital
Response Time: ≤ 1 second
Sensing Accuracy: < 0.01% water-in-fuel detection
Operating Pressure: Up to 10 bar
Operating Temperature: –20 °C to +70 °C
Probe Material: SS316 / Anodized Aluminium
Enclosure Protection: IP67 / Flameproof Ex-d / Intrinsically Safe (optional)
Cable Length: 5 m standard (extendable as per requirement)
Mounting Type: Threaded (BSP/NPT) / Flanged / Inline Sensor Body
Standard Compliance: EI 1598, JIG 1, ATEX, IECEx (optional)

Features:

 High-accuracy water detection ensures only clean, dry fuel reaches aircraft tanks.
 Instant response with signal output to stop fueling or trigger alarms within seconds.
 Aviation-grade SS316 construction compatible with Jet A-1 and anti-static fuel systems.
 Intrinsically safe and explosion-proof design suitable for refuelling zone environments.
 Compact and maintenance-free sensor integrates easily into filter or refueller pipelines.
 Multiple output formats (analog/digital) for direct PLC, indicator, or control panel interface.
 Certified to international fueling standards ensuring reliability, traceability, and compliance.

Water Detection Sensor – FAQs

Trace free water in aviation fuel.

Less than 1 second.

Relay, 4–20 mA, or RS485 Modbus.

SS316 or anodized aluminium.

Yes, Ex-d or IS versions available.

Filter vessels, trucks, hydrant dispensers, tanks.
