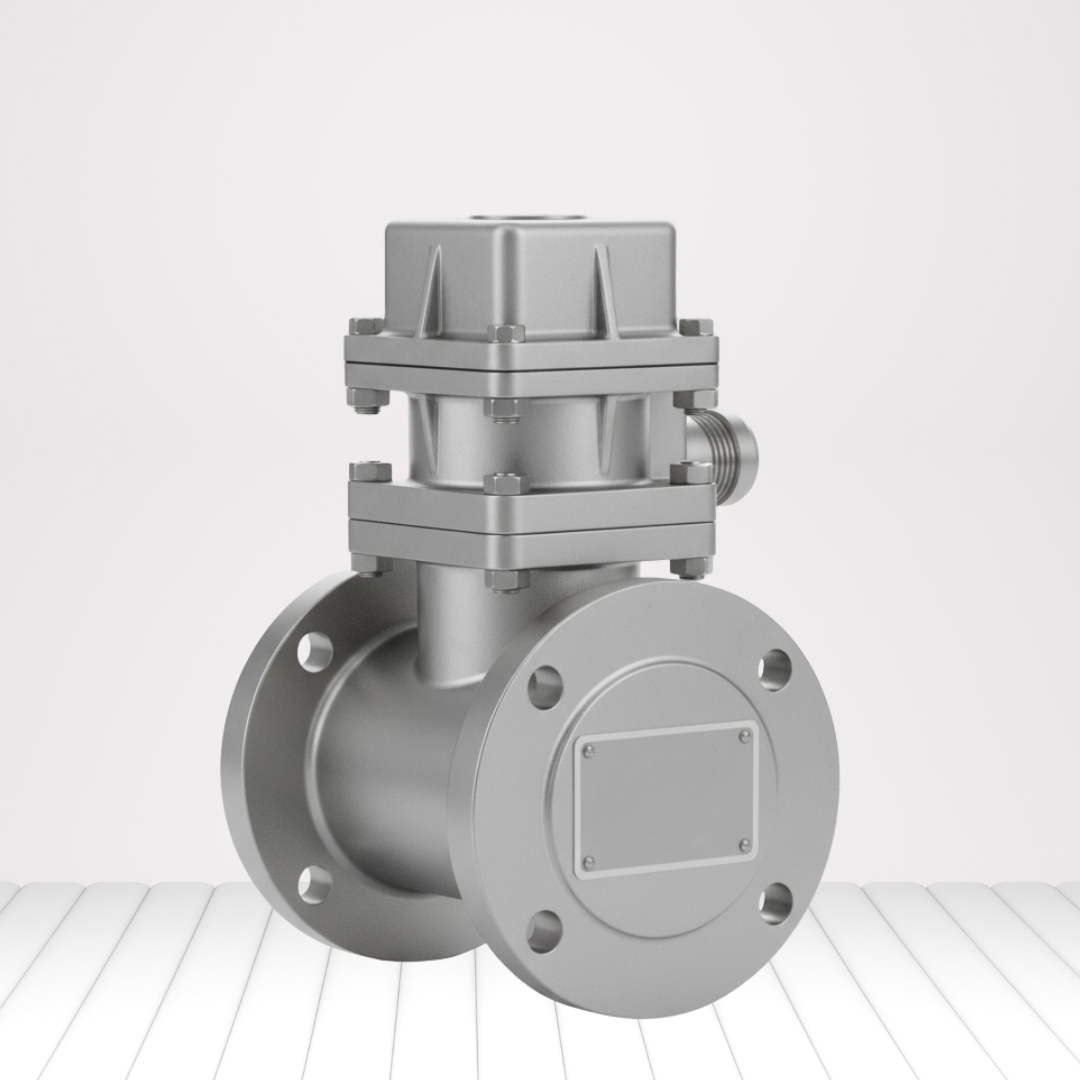

High Differential Pressure (DP) Switch

Description: The High Differential Pressure Switch is a precision monitoring device designed to detect pressure variation across filters, strainers, pumps, or flow systems.
It activates an alarm or control output when the differential pressure exceeds a preset limit, indicating filter blockage ,system restriction, or abnormal flow conditions.
Built with robust materials and high sensitivity, it ensures safe, efficient, and reliable operation across industrial, fuel handling, and process applications.

Mobirise Website Builder

Specification:

Type: Mechanical / Electronic Differential Pressure Switch
Pressure Range: 0 – 10 bar / 0 – 16 bar / custom range available
Set Point Range: Adjustable from 0.5 to 5 bar
Maximum Working Pressure: Up to 25 bar
Media Compatibility: Fuel, Oil, Air, Water, Hydraulic Fluids
Accuracy / Repeatability: ±1 % of Full Scale
Electrical Rating: 12 / 24 V DC, 110 / 230 V AC
Output Contact: SPDT / DPDT, NO / NC
Process Connection: ¼″ BSP / NPT (dual ports)
Material of Construction: SS316 / Aluminium / Brass (optional)
Enclosure Protection: IP65 – IP67 / Flameproof (Ex-d) / Intrinsically Safe
Operating Temperature: –20 °C to +80 °C
Mounting Type: Panel Mount / Line Mount / Bracket Mount
Compliance: CE / ATEX / IECEx (optional)

features:

 Detects filter clogging or flow restriction through precise pressure differential monitoring.
 Field-adjustable set point for flexible use in various pressure ranges.
 Reliable switching mechanism for alarms, interlocks, or pump shutdown.
 Corrosion-resistant SS316 housing ensures durability in harsh or fuel-handling environments.
 Explosion-proof / weather-proof construction for safe use in hazardous or outdoor areas.
 Compact, vibration-resistant design ideal for skid, plant, or mobile equipment integration.
 Long service life and high accuracy reduce maintenance and ensure continuous system safety

High DP Switch – FAQs

It monitors differential pressure across filters.

Mobirise Kit is a service that provides the access to all current and new themes/extensions developed by Mobirise. New themes/extensions are released every month and will be available in your account during your plan period, without any additional charge.

SPDT/DPDT contact outputs.

SS316, aluminium, or brass.

IP65–IP67, flameproof options.

Filter separators, strainers, pump skids.
