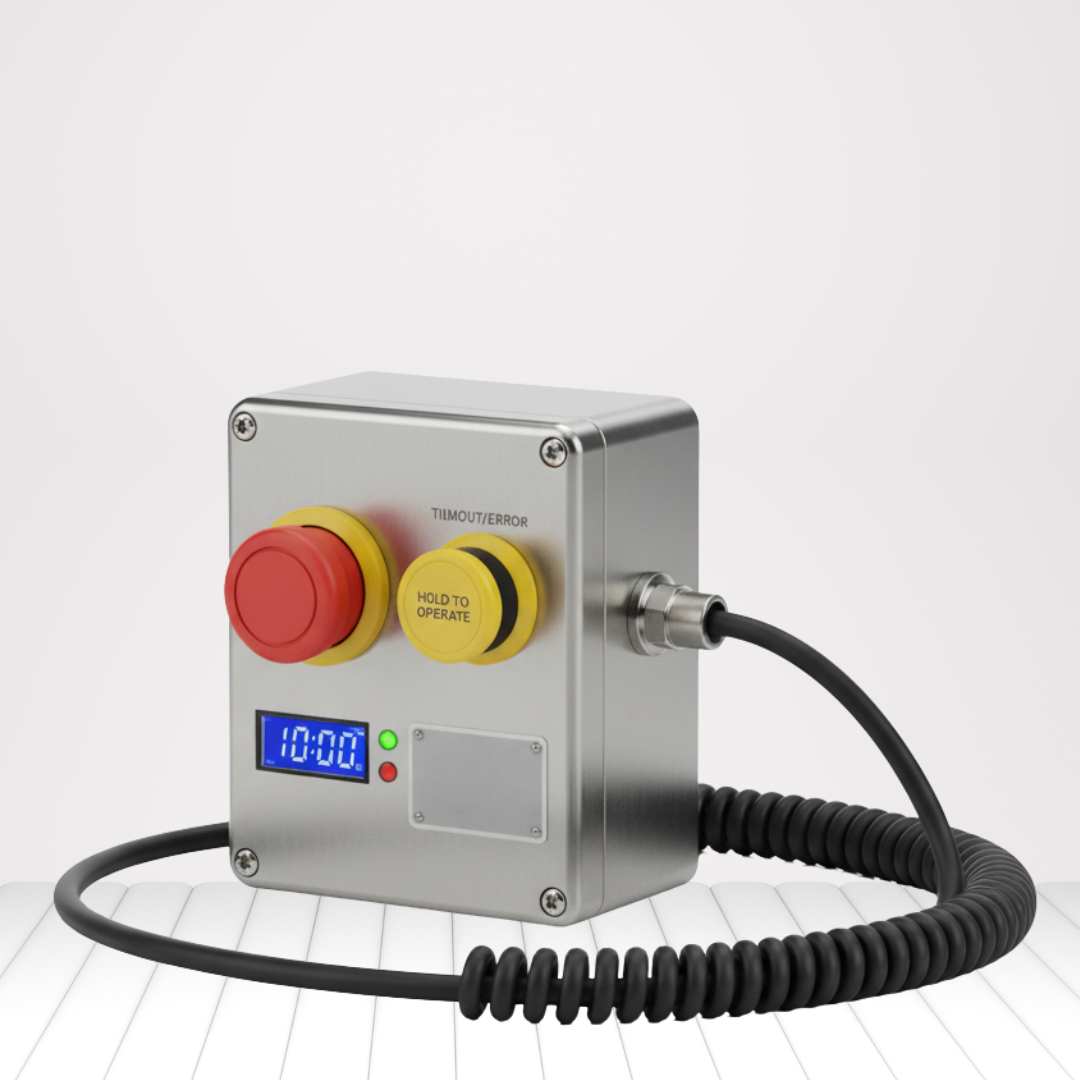

Deadman Timer System

Description: The Deadman Timer System is a safety control device designed to ensure that an operator remain actively engaged during fuel transfer, loading, or any critical operation.
If the operator fails to press or hold the control within a set time period, the system automatically shuts down pump valves, preventing overfilling, spillage, or unattended operation.
This system enhances safety, compliance, and operational control in fuel handling, tanker loading, and industrial automation processes.

Mobirise Website Builder

Specification:

System Type: Electronic / Pneumatic Deadman Timer
Time Delay Range: Adjustable 30 seconds – 5 minutes
Control Input: Push-button, remote pendant, or wireless transmitter
Output Type: Relay Contact (NO/NC) / 24 V DC Logic / Pneumatic Output
Power Supply: 12 / 24 V DC (optional 110 / 230 V AC)
Load Capacity: 5A @ 230 V AC or equivalent
Enclosure: Weatherproof IP65 / Flameproof Ex-d (optional)
Indicator / Display: LED / Digital Countdown Timer
Reset Method: Manual (push button) / Remote Reset / Automatic Restart Lockout
Mounting Type: Panel Mount / Wall Mount / Portable Handheld
Alarm Output: Audible Buzzer or Visual Light before Timeout
Compliance: Meets Safety and Fueling Control Standards (ATEX, CE, ISO)

Features:

 Automatic safety shutdown if operator fails to respond within preset time.
 Adjustable timer range for flexibility across different process requirements.
 Visual and audible alarms provide advance warning before shutdown.
 Compact, weatherproof design ensures reliability in field and outdoor environments.
 Multiple control interfaces (push-button, wired, or wireless) for user convenience.
 Failsafe relay logic ensures system remains safe under power loss or fault.
 Easy integration with pumps, valves, PLCs, and refuelling automation panels.

Deadman Timer System – FAQs

To ensure operator presence during fueling.

30 seconds to 5 minutes.

Push button, pendant, or remote device.

Relay or logic signal to shut down pumps.

Yes—buzzer/light alerts are included.

Available in flameproof Ex-d versions.
