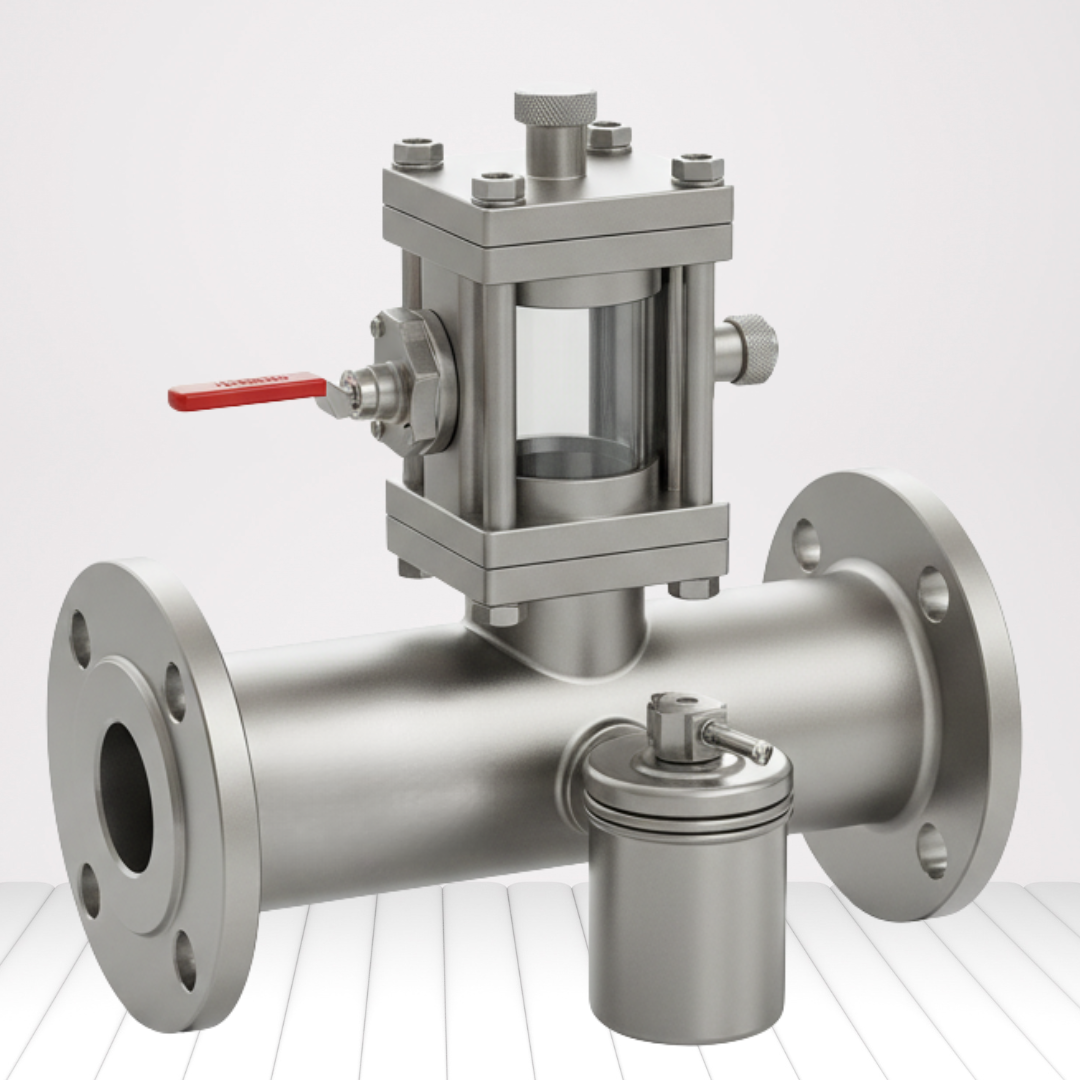

Closed Circuit Sampler

Description: The Closed Circuit Sampler (CCS) is a precision-engineered device designed for safe, contamination free collection of liquid samples from pressurized or hazardous systems such as fuel lines, chemical tanks, and process pipelines.
It enables operators to collect representative samples without exposing the product to the atmosphere, ensuring accurate testing, environmental safety, and operator protection.
Built for reliability and compliance with international safety and sampling standards (EI 1540 / ISO 3171), the system ensures zero vapor release, no spillage, and accurate sample integrity every time.

Mobirise Website Builder

Specification:

System Type: Closed Loop / Pressure-Tight Sampling System
Medium Compatibility: Fuel (Jet A-1, Diesel, Gasoline), Chemicals, Oils
Operating Pressure: Up to 10 bar (standard) / 25 bar (custom)
Operating Temperature: –20 °C to +80 °C
Sampler Body Material: SS316 / Aluminium Alloy / Carbon Steel (coated)
Seal Material: Viton / Nitrile / PTFE
Sample Volume: Adjustable 50 ml to 500 ml per draw
Container Type: Sealed Bottle or Pressure-Rated Glass Vessel
Connection Type: ½″ BSP / NPT or Flanged
Vent System: Built-in Vapor Recovery / Bleed Return Line
Safety Mechanism: Double-Valve Isolation and Locking Handle
Mounting Type: Fixed Line Mount / Portable Skid Mount
Compliance: EI 1540, ISO 3171, ATEX (optional)

Features:

 Zero-contamination closed-loop design for safe, representative sampling.
 Pressure-tight and vapor-sealed construction prevents leaks and emissions.
 Quick and easy sample collection without interrupting process flow.
 Aviation-grade SS316 components ensure durability and chemical compatibility.
 Adjustable sample volume for flexibility across product types.
 Built-in safety interlocks and return lines enhance operator and environmental safety.
 Compliant with EI 1540 and ISO 3171 standards for accurate and safe sampling.

Closed Circuit Sampler – FAQs

To take fuel samples safely without exposing fuel to atmosphere.

Up to 10 bar standard; 25 bar custom.

SS316, aluminium, or coated carbon steel.

50 ml to 500 ml per draw.

Yes—integrated vapor return line.

Meets EI 1540 and ISO 3171.
